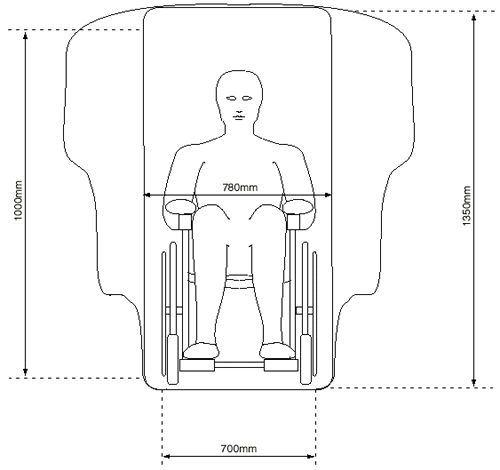

DIAGRAM 8 - WHEELCHAIR ENTRANCE TEMPLATE

At least one doorway must provide a minimum unobstructed space through which a template of 1350mm high and 780mm wide may be passed through the doorway, in a plane at right angles to the direction in which the wheelchair user would be entering the vehicle. The minimum dimensions shown allow for doorway curvature.
